7 Petals of the Living Building Challenge

November 1st, 2021 | 8 min. read

7 Petals of the Living Building Challenge

Print/Save as PDF

The Living Building Challenge (LBC) is the most rigorous sustainable building design standard. Rather than “do less harm,” it seeks to create buildings that positively impact the environment and community—making the world a better place through design and construction.

If you are interested in sustainable design, you may be considering the LBC as a potential route to take.

At Neumann Monson, we are working with the Stanley Center for Peace and Security to complete the first fully certified Living Building in Iowa. While helping the Stanley Center bring its vision to life, we hope to educate anyone who is interested in taking on the Challenge. Sustainability is one of our top priorities, and by sharing our knowledge, we want to make it easier for others to build green.

This article explains the LBC’s “Petal System” and the process of designing and constructing a building that meets these standards. By the end of this blog, you will understand the requirements of each Petal and how to fulfill these requirements with specific design choices.

What is the Petal System for the Living Building Challenge?

Living Building projects are judged against seven sets of criteria known as “Petals.” The Petals create a holistic guide to sustainability, addressing everything from material selection to occupant health.

The seven petals are:

  1. Place
  2. Water
  3. Energy
  4. Health and Happiness
  5. Materials
  6. Equity
  7. Beauty

Each petal is divided into separate requirements called “imperatives,” for a total of twenty imperatives in the Challenge. While “Petal Certified” buildings need to fulfill a select number of imperatives, “Fully Certified” projects need to fulfill all twenty.

Projects are judged on actual rather than expected performance, and certification occurs at least a year after the project is complete.

The Living Building Challenge’s 7 Petals

1. Place

The Place Petal outlines where it is acceptable to build and how to restore and protect a place once it has been developed. It also aims to create communities that are based on human-powered forms of transportation, like walking and biking, rather than automobiles.

The Petal has specific requirements related to:

  • Location
  • Wildlife Protection
  • Community Engagement
  • Food Production

For example, projects cannot be built on prime greenfields, wilderness, farmland, or floodplains. Project teams should also assess the needs of the community, factor them into the design, and contribute to local food production through urban agriculture.

Place at the Stanley Center

The Stanley Center addresses these requirements by renovating a neglected downtown building, the former Musser Public Library. When completed, the facility will include weather-protected bike racks and on-site showers to promote biking and walking.

To fulfill the urban agricultural component, the facility will include an 850-square-foot garden that will produce vegetables and herbs for Muscatine Center for Social Action (MCSA), a non-profit that provides food pantry services and homeless housing.

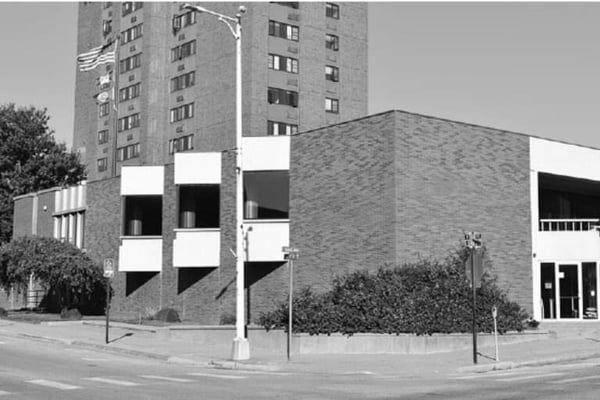

Musser Public Library

Musser Public Library Building before renovation.

2. Water

The Water Petal encourages building owners to think of water as a precious resource. It addresses the energy and chemicals used for transporting, purifying, and pumping water and promotes alternative solutions to water consumption.

The Petal sets requirements related to:

  • Water Capture
  • Water Treatment
  • Wastewater Management

All projects must supply 100% of their water needs through closed-loop water systems, and all water needs to be treated without chemicals. This means all potable water is captured, treated, and stored on-site.

Ideally, wastewater should also be treated and managed on-site, but this is often difficult for projects in urban settings. In these situations, the LBC allows for an alternative technique known as “hand-printing.”

Water at the Stanley Center

Initially, the Stanley Center planned to treat and manage wastewater through a constructed wetland. Due to complications that went against the overall goal of the project, they partnered with MSCA to complete the “hand-printing” requirements. By replacing MCSA’s water fixtures with low-flow alternatives, they will decrease Muscatine’s wastewater levels and produce the same effect as onsite wastewater treatment.

3. Energy

The Energy Petal is designed to drastically reduce our reliance on fossil fuels. It imagines a future powered by a decentralized, renewable power grid, and requires all projects to operate year-round in a pollution-free manner.

To fulfill the requirements of the petal, the building must produce 105% of its energy onsite through renewable, noncombustible resources.

Energy at the Stanley Center

Solar arrays are the most common way to fulfill this requirement. Once completed, photovoltaic arrays will cover the roof of the Stanley Center’s facility. Some panels will even overhang the alley that separates the facility from MCSA, providing shade and weather protection for individuals utilizing MCSA’s food pantry services.

Stanley Center for Peace and Security rendering

Rendering for the Stanley Center for Peace and Security, a Living Building

4. Health and Happiness

The Health and Happiness Petal seeks to connect building occupants to nature and ensure everyone has access to healthy air and light. Creating healthy interior environments requires a collaborative relationship between architects, interior designers, engineers, and building occupants, as well as continuous monitoring.

The Petal sets requirements related to:

  • Daylight
  • Fresh air
  • Cleaning protocols
  • Flexible work options
  • Individual control over ventilation, temperature, and light
  • Access to nature

Health and Happiness at the Stanley Center

The Stanley Center will fulfill these requirements with operable windows in regularly occupied spaces, giving everyone access to fresh air and daylight. An outdoor courtyard will give all occupants access to nature during the workday. Additionally, the facility will feature flexible work options, including private offices and dedicated collaboration spaces.

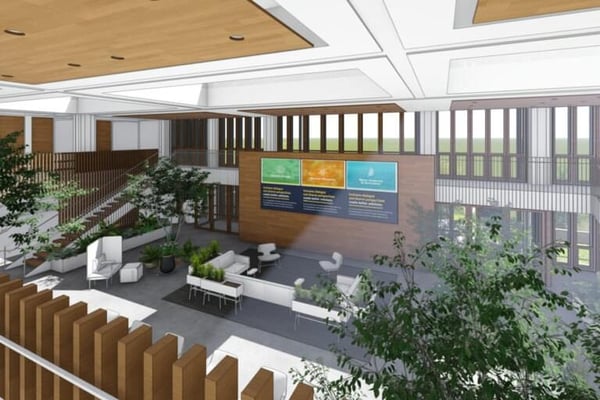

Stanley Center interior rendering

Daylighting at the Stanley Center

5. Materials

The Materials Petal is one of the most challenging aspects of the LBC. Throughout their lifecycle, many building materials are responsible for adverse environmental and human health issues. The LBC seeks to combat the negative impact of building materials through industry-level change.

The Petal sets requirements related to:

  • Chemicals to avoid
  • Local Sourcing
  • Waste Disposal
  • Industry-Level Advocacy

Materials at the Stanley Center

The design of the Stanley Center demonstrates the rigor that goes into the Materials Petal. The construction of the new facility will use approximately 600-900 materials, and each must be vetted by the project team.

The building cannot feature any materials found on the “Red List” and must feature products that use the International Living Future Institute’s Declare Label, a product “nutrition label” that transparently outlines product ingredients. To enact industry change, the Stanley Center is encouraging manufacturers to utilize the Declare Label.

6. Equity

The Equity Petal aims to foster a just and inclusive community that enables everyone to prosper and reach their full potential. All projects should be equally accessible to all members of the public, and the design and construction of the building should have a positive local impact.

The Petal sets requirements related to:

  • Accessibility
  • Local Job Opportunities
  • Just Labels for Project Team Members

Equity at the Stanley Center

The Just Label is perhaps the most important aspect of the Equity Petal. Designed by the ILFI, the Just Program assesses organizations in terms of equity and social justice and provides a publicly available “nutrition label.”

To fulfill these requirements, we became a Just Organization in 2020. The Stanley Center is currently applying for their label, meaning two members of the project team will be assessed through Just.

We have also adapted the existing building to meet the seven Universal Design Standards, making it accessible for all.

7. Beauty

The LBC pushes the idea that beauty is a precursor to caring about the greater good. As such, the Beauty Petal emphasizes the importance of creating beautiful buildings that enhance the public realm.

Although beauty is hard to quantify, the Petal has some specific requirements, including:

  • Features that enhance the public realm, like public art
  • Features that celebrate the culture and spirit of a place
  • Biophilic design elements that connect occupants to nature

This petal also sets requirements related to public education. The LBC is designed to create a “ripple effect” and change the way we design and build. Through education, the LBC hopes to encourage other developers to build green.

The education requirements include:

  • A publicly available Living Building Case Study
  • A publicly available copy of the building’s Operations and Maintenance Manual
  • Publicly available brochures that describe the project and its environmental features
  • An annual open house
  • An educational website, such as the one the Stanley Center produced

Beauty and Education at the Stanley Center

When completed, the Stanley Center’s facility will work with a local artist to create public art from salvaged building materials. The Center will also engage the Muscatine community by showcasing and promoting the building’s sustainable features.

Taking on the Living Building Challenge

The Living Building Challenge is the most thorough and holistic green building rating system on the market. Its seven petals create a comprehensive guide to sustainable design, touching on everything from occupant health to energy efficiency and more.

Meeting the standards of the Living Building Challenge is, well, challenging. But as the Stanley Center demonstrates, it is not impossible. Through specific design choices, you can meet the Petals’ requirements and earn the title of “Living Building.”

Not sure if the LBC is right for you? Explore other routes of sustainable design by checking out our guide to green building rating systems.
